FFA series Indoor LED Display 640x480

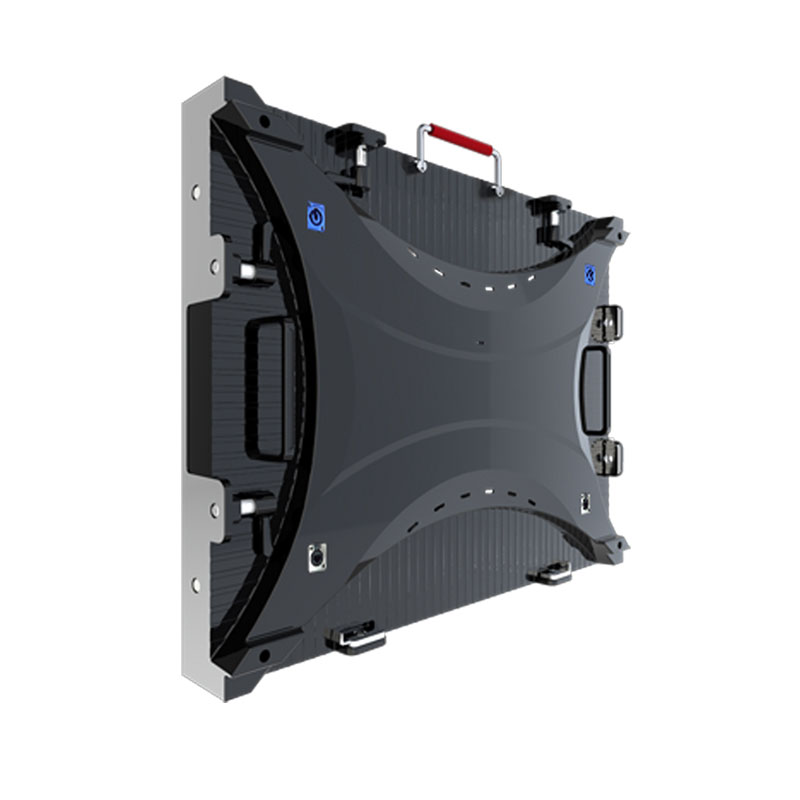

FFA series Indoor LED Display 640x480

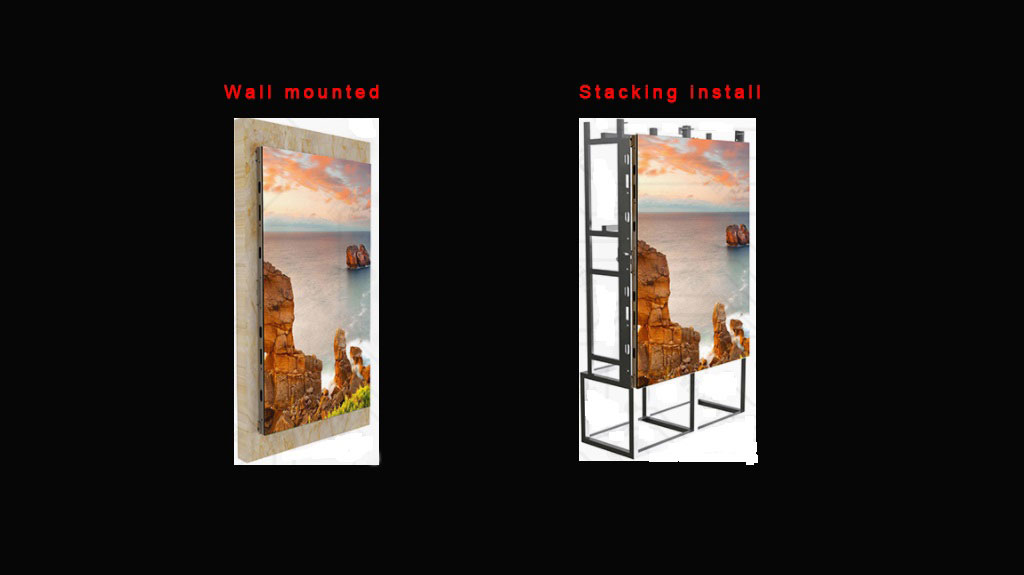

The new generation FFA Series a special design LED video wall for indoor fixed installation, The panel is light weight and slim but durable, The most advantage is that FFA series support wall mounted without stell structure, Super thin and front access make maintenance to be easier. The best choice for Shopping mall, Retail stores, TV Studio, Conference room and other places.

Pixel Pitch：P2, P2.5, P3, P4, P5
Module Size：320x160mm

Features：High accuracy, Quick installation, Magnetic suction, Front Maintenance design

Application：Indoor

  • FFA series Indoor LED Display 640x480
  • FFA series Indoor LED Display 640x480
<
>
  • Description
  • Parameter
  • Video
Application
Indoor
Product Model
FFA-I2
FFA-I2.5
FFA-I3
FFA-I4
FFA-I5
Pixel Pitch(mm)
2
2.5
3
4
5
LED Type
SMD1415
SMD2121
SMD2121
SMD2121
SMD2121
Pixels(dot/㎡)
250112
160000
105625
62500
40000
Cabinet Resolution
160*80
64*64
104*52
80*40
64*32
Best Viewing Distance(m)
2-32
2-33
3-40
4-40
5-30
Scan Rate
1/40S
1/32S
1/26S
1/20S
1/16S
Drive IC
ICN6363
ICN6238S
ICN6238S
ICN2037
ICN5020
Cabinet Material
Die casting Aluminum
Cabinet Dimension(mm)
640x480x69
Quantity of Panel
6pcs
Cabinet Weight(Kg)
7kg
Module Dimension(mm)
320x160
Brightness(cd/㎡)
800-1200
Color Grayscale(Bit)
14-16
View Angle
160°(horz.) / 140° (vert.)
Refresh Rate (Hz)
1920-3840
Frame Frequency(Hz)
50/60
AC Input Voltage(V)
110-220 V/  50-60 Hz
Max Power
≤800
Average Power
≤400
Life Span(hours)
100000
Operating Temperature(℃)
-10~40
Storage Temperature(℃)
-40~60
Operating Humidity(RH）
10%~65%
Storage Humidity(RH）
10%~90%
IP Rating(front/rear)
IP43/IP33
01

Application scene

It be suitable for Shopping mall, Retail stores, TV Studio, Stage, Conference room and other indoor places.

02

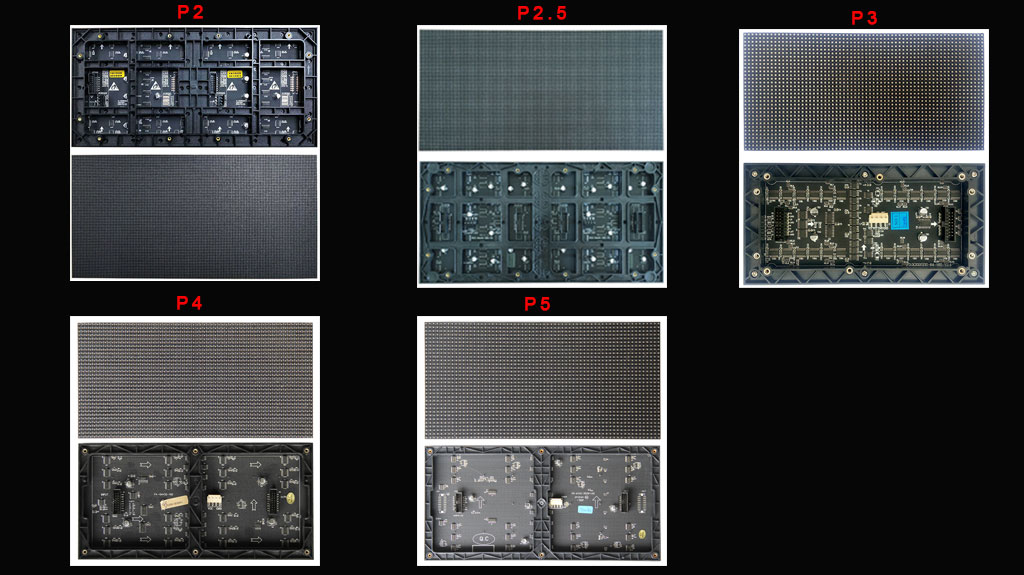

Module advantage

  1. High quality Nationalstar SMD.
  2.
  3. Can be hard-wired, front maintenance.
  4.
  5. Brightness can be customized upon request.
  6.
  7. More energy-saving driver IC, saving up to 30% of power consumption, is available upon request.
03

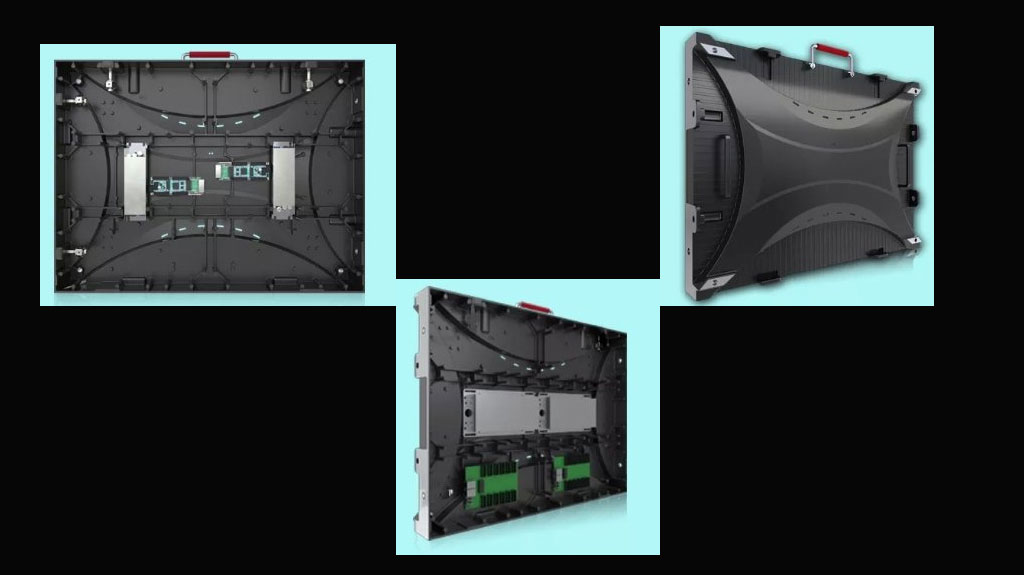

Cabinet advantage

  1. Lock can be installed on module surface to realized direct and fast front splicing.
  2.
  3. Large size power supply and receiving card can be installed cabinet.
  4.
  5. Fast locks can also be installed behind the cabinet and on the back.
  6.
  7. Supper Light and Thin, The weight is only 7kg and Thickness is only 70mm.
04

Quick installation and maintenance

Module quick installation knob

Support module magnetic

Ultra-thin wall thickness, embedded module, side waterproof interface
