FRK series Rental LED Display 500x500

FRK series Rental LED Display 500x500

FRK series LED rental screen die-casting aluminum cabinet, thin and light design, easy to disassemble and assemble, higher resolution, clearer picture, providing you with a high-quality viewing experience. Application scope: indoor and outdoor stages, TV studios, concerts, concerts, exhibitions, etc...

Pixel Pitch：P2.604, P2.976, P3.91, P4.81
Module Size：250x250mm

Features：High accuracy, Radian stitching, Quick installation, Magnetic suction, High strength for floor tiles screen

Application：Indoor and Outdoor

  • FRK series Rental LED Display 500x500
  • FRK series Rental LED Display 500x500
  • FRK series Rental LED Display 500x500
  • FRK series Rental LED Display 500x500
<
>
  • Description
  • Parameter
  • Video
Application
Indoor
Outdoor
Product Model
FTK-I2
FTK-I3
FTK-I4
FTK-I5
FTK-O3
FTK-O4
FTK-O5
Pixel Pitch(mm)
2.604
2.976
3.91
4.81
2.976
3.91
4.81
LED Type
SMD1515
SMD2121
SMD2121
SMD2121
SMD1415
SMD1921
SMD1921
Pixels(dot/㎡)
147456
112896
65536
43264
112896
65536
43264
Cabinet Resolution
192*192
168*168
128*128
104*104
168*168
128*128
104*104
Best Viewing Distance(m)
3-38
3-38
3-45
6-50
3-38
3-45
6-50
Scan Rate
1/32S
1/28S
1/16S
1/13S
1/21S
1/16S
1/13S
Cabinet Material
Die casting Aluminum
Die casting Aluminum
Cabinet Dimension(mm)
500x500x76.5 / 500x1000x76.5
500x500x76.5 / 500x1000x76.5
Quantity of Panel
4pcs / 8pcs
4pcs / 8pcs
Cabinet Weight(Kg)
4.6 / 7.5
4.6 / 7.5
Module Dimension(mm)
250x250
250x250
Brightness(cd/㎡)
800-1200
3500-6500
Color Grayscale(Bit)
14-16
14-16
View Angle
160°(horz.) / 140° (vert.)
160°(horz.) / 140° (vert.)
Drive IC
ICN2037
ICN2037
Refresh Rate (Hz)
1920-3840
1920-3840
Frame Frequency(Hz)
50/60
50/60
AC Input Voltage(V)
110-220 V/  50-60 Hz
110-220 V/  50-60 Hz
Max Power
800
900
Average Power
400
400
Life Span(hours)
100000
100000
Operating Temperature(℃)
-10~40
-10~40
Storage Temperature(℃)
-40~60
-40~60
Operating Humidity(RH）
10%~65%
10%~65%
Storage Humidity(RH）
10%~90%
10%~90%
IP Rating(front/rear)
IP43/IP33
IP68/IP65
01

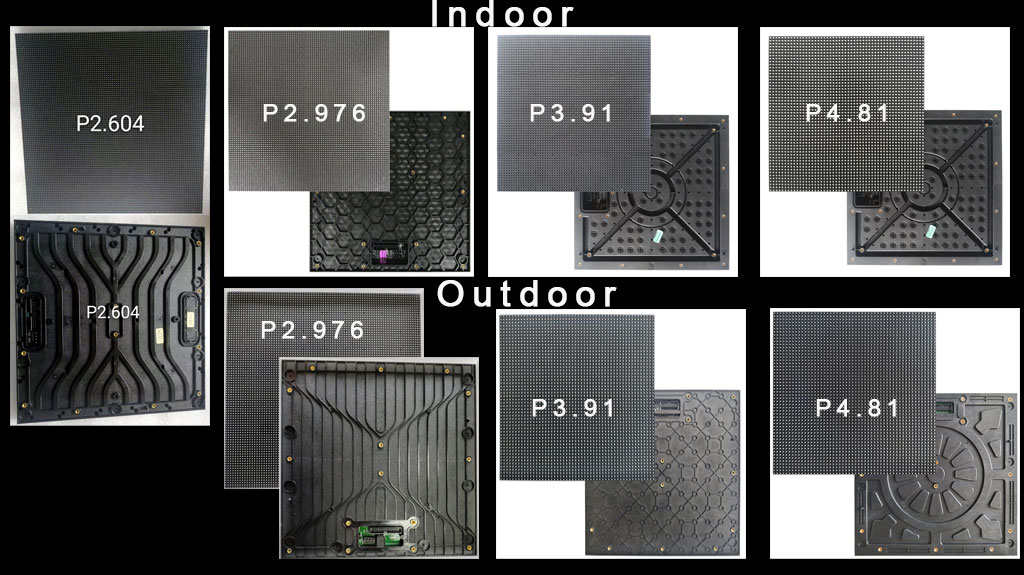

Module advantage

  • The module uses an automatic glue filling machine to fill the glue to ensure that the module is filled evenly, smoothly and has good waterproofness.
  •
  • The modules are all three-proof paint to protect the circuit board and related equipment from environmental influences.
  •
  • It has excellent insulation, moisture-proof, anti-leakage, anti-vibration, anti-corrosion, anti-aging, corona resistance, high temperature resistance and other characteristics.
02

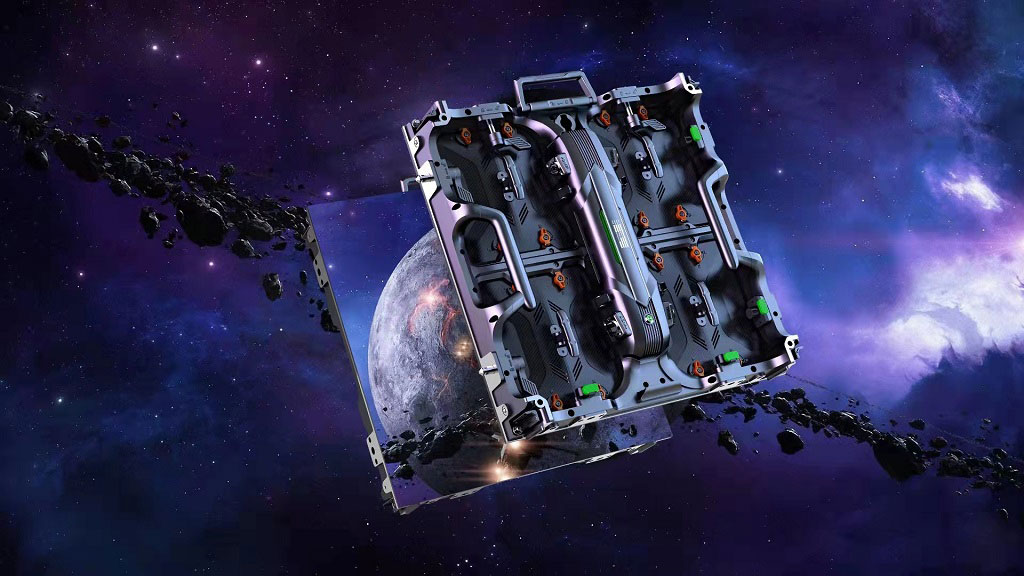

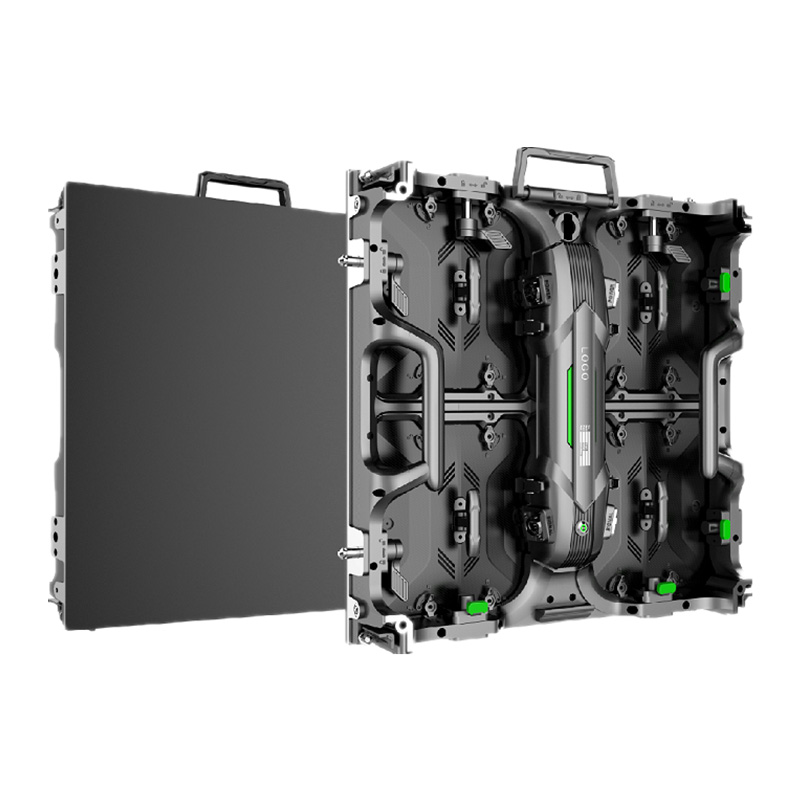

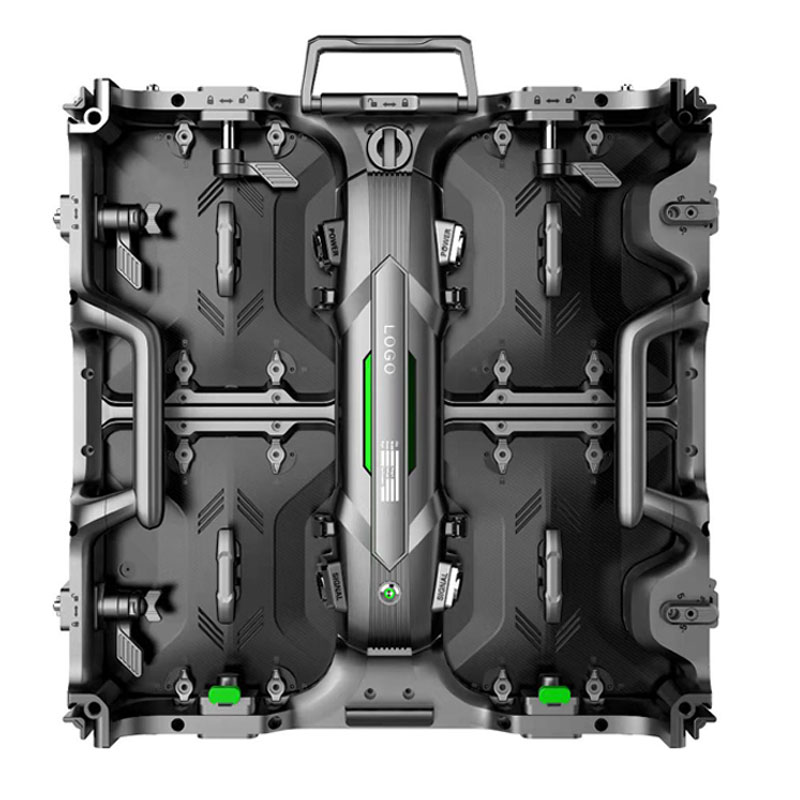

Cabinet advantage

The Cabinet is made of aluminum-magnesium-zinc alloy customized die-cast aluminum Cabinet, which is not easy to deform, anti-corrosion and fast heat dissipation.

Extend the product's long service life, and the design is light and thin, which is convenient for transportation and installation.

The stainless steel lock buckle connection is stronger, more stable and safer.

High precision and seamless splicing.
03

Other advantages

Professional aviation plug, beautiful and stable, low loss.

Double backup of power supply can be customized to prevent emergencies.

The aviation power distribution cabinet can be customized, which is convenient and easy to use.

Special air box packaging, safe transportation
04

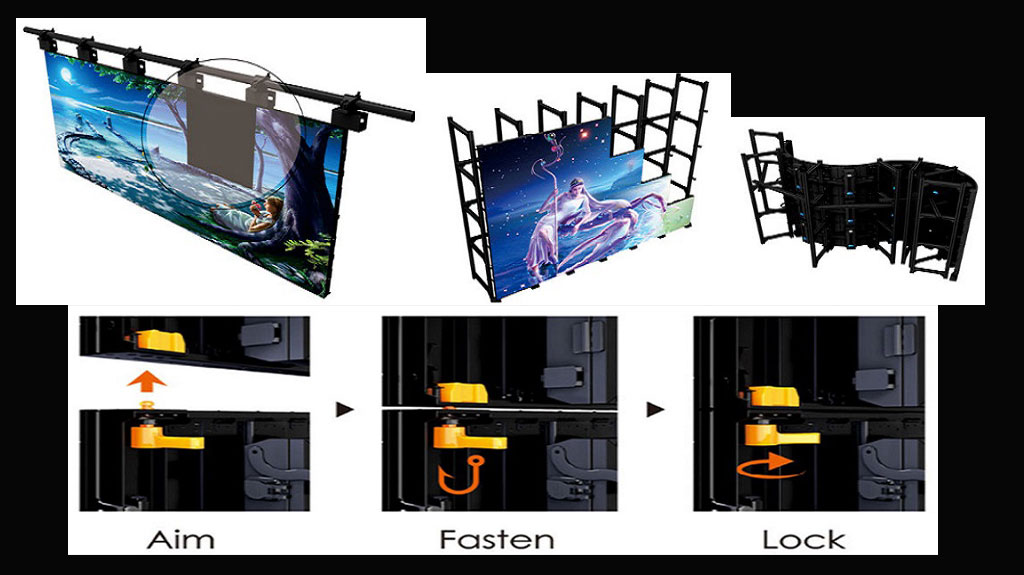

Installation advantages

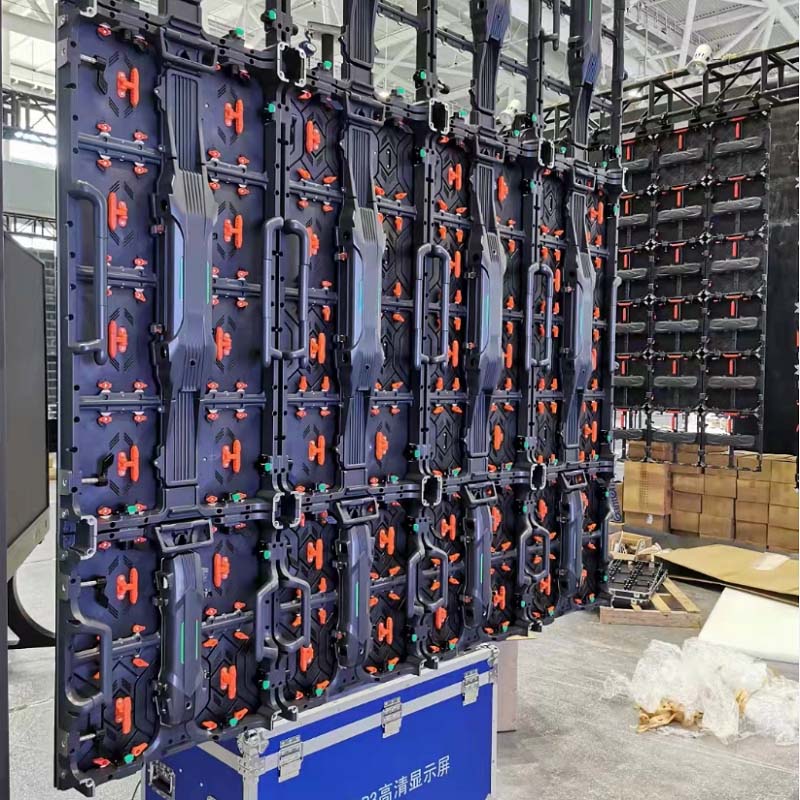

  1. Cabinet of different sizes (500*1000mm and 500*500mm) can be combined together.
  2.
  3. Support arc splicing, arc locks can be customized, seamless splicing at multiple angles, hoisting and base mounting.
  4.

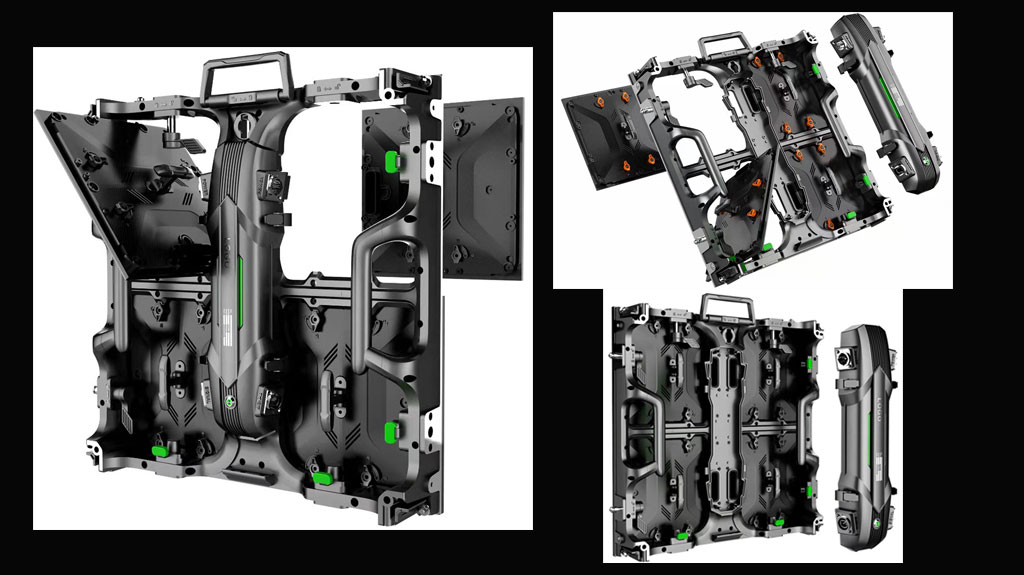

  5. Independent disassembly of the power supply box, quick installation, magnetic module suction, Front and back quick maintenance
05

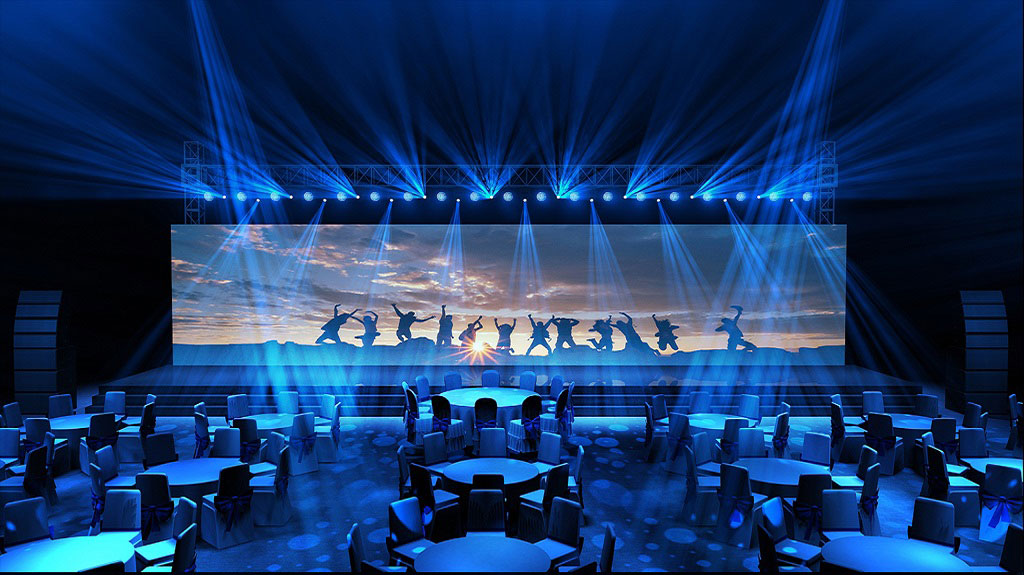

Applicable scene

---Education and publicity:  interactive systems in campus areas, training institutions, etc.
---Public places:  information display in airports, railways, subways, highways and other transportation industries, libraries, museums, shopping malls and other places.
---Commercial presentations:  TV studios, Stage events and commercial exhibitions, hotel lobbies, enterprises and institutions, etc.
---Government departments:  convenient publicity, work guides, open government affairs, etc.
