TMC series cylindrical LED transparent screen

The TMC series adopts a flexible frame design, supports bending installation, and provides a variety of artistic display effects. The screen body can be bent into a cylindrical display, with a thickness of only 3.5mm, and the product weighs about 6kg per square meter. It can be viewed in 360 degrees and supports viewing from all directions

Point spacing: P1.9, P2.8, P3.9, P5.2, P7.8, P10.4, P15.625
Features: High transmittance, ultra-thin design, multiple video control methods, flexible frame.
Scope of application: indoor

Description
Parameter
Video

Product Model	FTD1	FTD2	FTD3	FTD5	FTD8	FTD10FT	FTD15
Pixel Pitch (mm)	1.9*3.9	2.8*5.6	3.9*7.8	5.2*10.4	7.8*7.8	10.4*10.4	15.625*15.625
Pixel Density (dot/m²)	129,024	61,952	32,768	18,432	16,384	9,216	4,096
Module Resolution (dots)	252*16	176*22	128*16	96*12	64*16	48*12	32*8
Cabinet Resolution (dots)	504*128	352*88	256*64	192*48	128*64	96*48	64*32
Scan Way	1/14	1/11	1/8	1/6	1/4	1/3	1/3
Transparency	42%	45%	65%	75%	65%	75%	85%
Brightness (nits)	800-4,500	800-5,500	800-5,500	800-5,500	800-5,500	800-8,000	800-7,500
LED Configuration	SMD1921/2020						SMD3535/2727
LED Brand	Nationstar
Cabinet Material	Aluminum Profiles / CNC
Maintenance Method	Front and back Maintenance
Power Requirements	100V~240V ± 10% ; AC 50/60 Hz
Power Consumption	high brightness models: 800W/m² low and medium brightness models: 400W/m²
Refresh Rate	≥1920 Hz
Viewing Angle(H/V)	≥160°/160°
IP Rating(front/back)	IP33/IP44
Operating Life	≥100,000H
Operating Temperature	-40℃-45℃
Weight	7kg/m²
Cabinet Size	1000*500mm

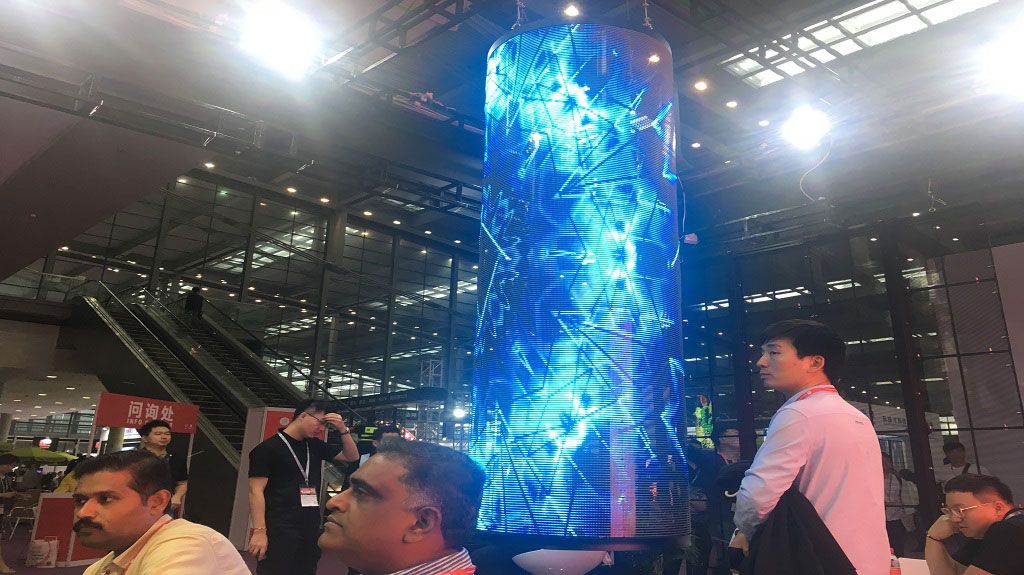

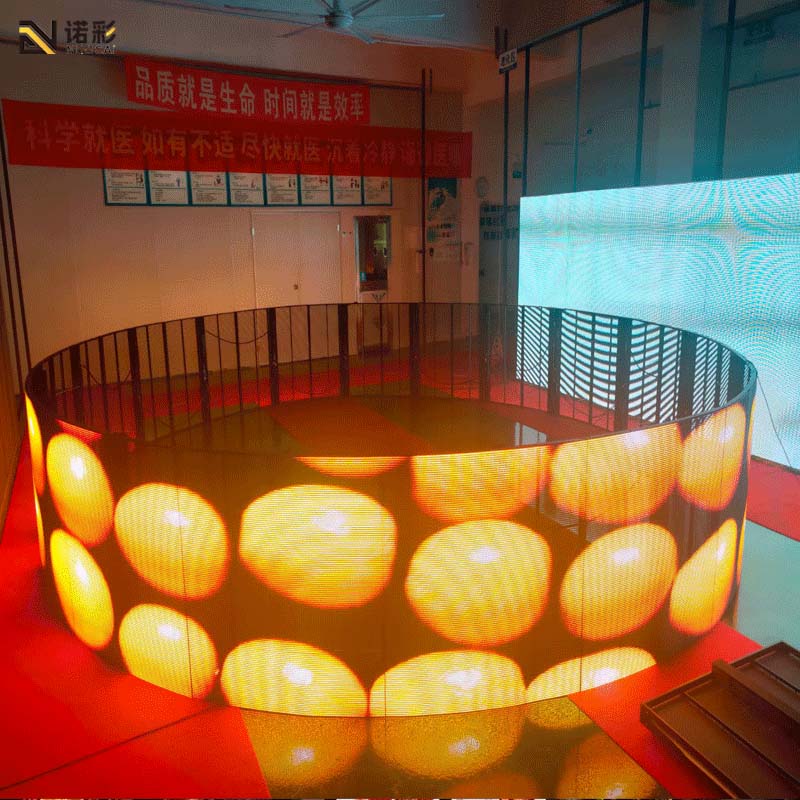

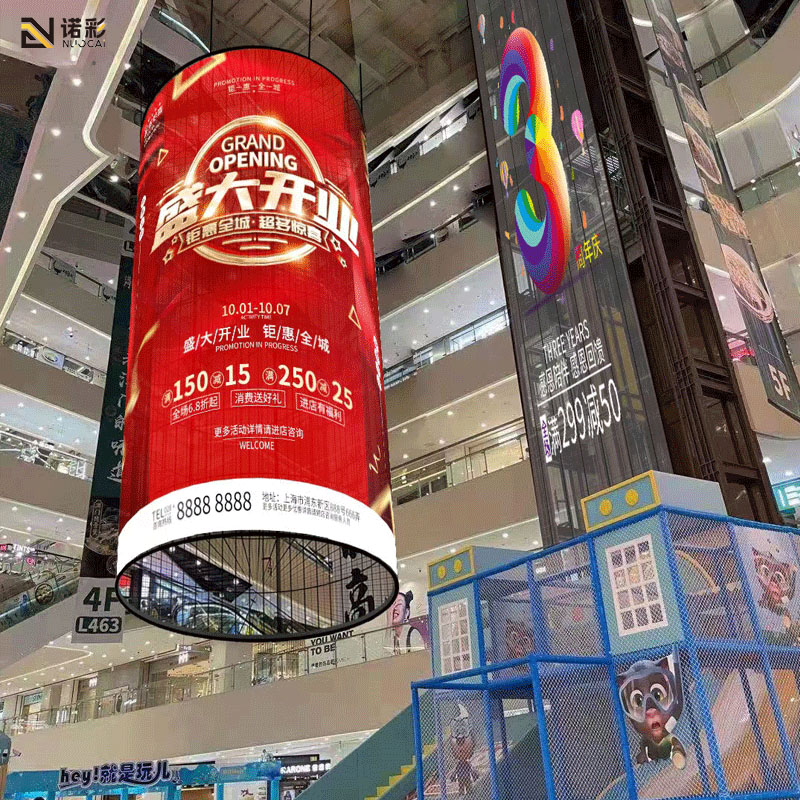

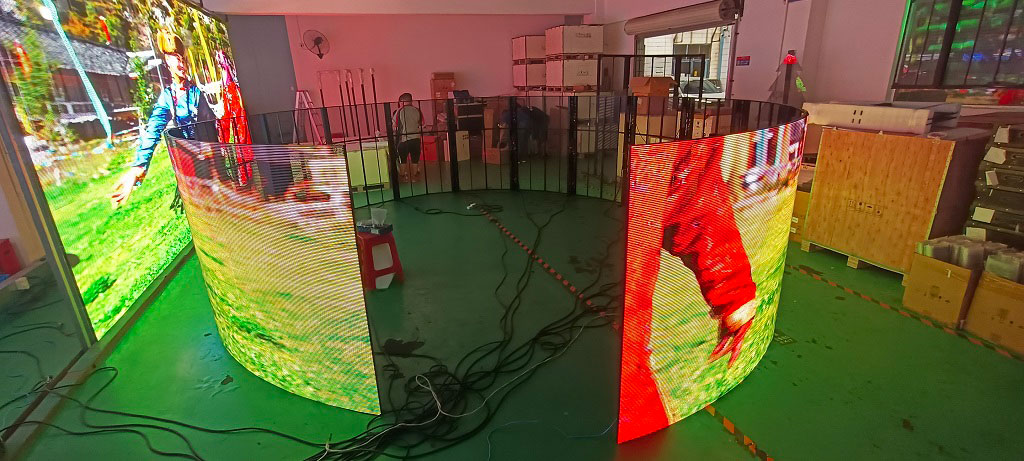

Cylindrical transparent screen series

Customizable creative style

Fast maintenance

Intelligent control

Flexible cabinet creates creative display.

The module has a large bending radius and the light bar is not easily deformed.

360° viewing angle, support diversified installation methods

Minimum spacing of 1.9mm, transparency of 75%.

Bring transparent and high-definition picture quality experience

Suitable for various indoor and outdoor scenes

A variety of brightness options of 800~6500nits can be customized according to various environments on site.
